Accessories

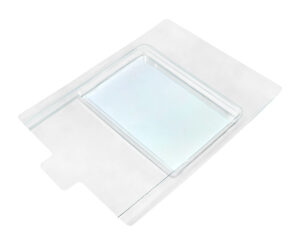

Tilting Material Tray
Also known as the Tilt tray. It comprises of two main parts – a film and a frame. Below the tilt tray assembly is a glass plate. The glass plate stays in position in the printer, below the tilt tray, see Install Material Tray and Clean Material Tray.

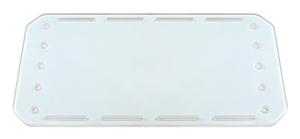

Glass Panel
Also known as Glass Plate. The glass panel is below the tilt tray assembly. The glass panel stays in position in the printer, below the tilt tray, at all times, see Clean Material Tray.
Drip Tray
The drip tray is located below the glass plate and is a protective cover that keeps the printer’s internal components clean, see Clean Material Tray.
Build Platform
Also known as Build Plate, Build tray, Printbed, Bed, Build Surface. The surface of the 3D printer on which the 3D printed part is formed, see Install Build Platform and Clean Build Platform.
Accessories

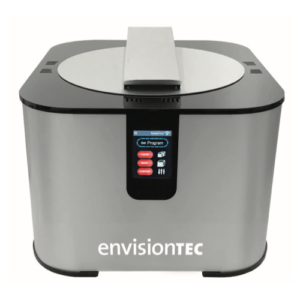

PCA 2000 Curing Apparatus
The Parts Curing Apparatus is used for post-curing the printed models. It utilizes a unique system of UV LED light sources that use both 385 nm to deep cure and 405 nm for the perfect surface cure of each part, see Cure Printed Parts.
PCA 4000 Curing Apparatus
This Parts Curing Apparatus is used for post-processing the printed models. At 300 watts of LED power, the PCA 4000 has twice the power of the PCA 2000.

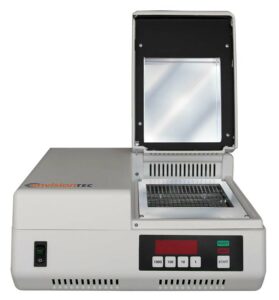

Otoflash
The Otoflash is a light polymerization chamber for the curing of light-curing materials for jewelry, dental and otoplastic applications. Two photoflash lamps at the bottom of the curing chamber produce very intensive light radiation in a spectrum from 300 to 700 nm. As a result, a better hardening of the materials is possible.
PCA 2000 Washing Apparatus
The Parts Washing Apparatus is a convenient tool to assist in cleaning any uncured resin from 3D printed models.The convenient removable basket allows for ease of use when dipping or extracting objects from the tank. For more information, see Clean Printed Parts .
