Install Build Platform

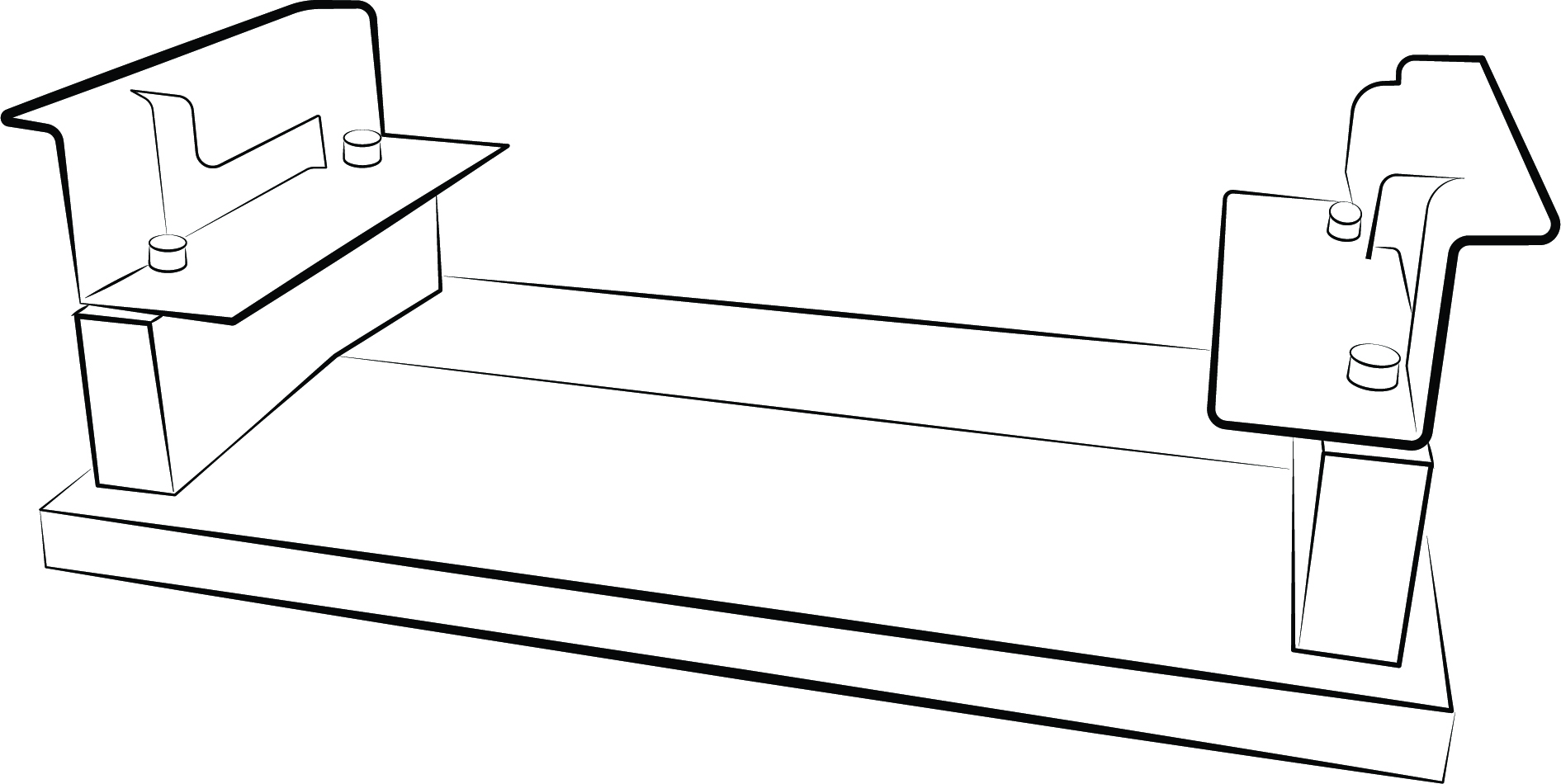

The build platform is an assembly comprised of:

  • A large, flat platform

  • Two handles

The flat area of the build platform is where cured material will adhere during the printing process.


To install the build platform:

  1. Open the protection door.

  2. Slide the build platform onto the receptor held on the Z slide.

  3. Tighten down the build platform clamp to secure the build platform.

  4. Check that the build platform is secured in position.

Important: Make sure the build platform is tightened down securely before building. Failure to do so will cause the build platform to be uneven and can cause build failures.
