Install Removable Material Tank

The Removable Material Vat is equipped with two casters and two inline wheels for easy installation and removal.

Important: The first installation and setup are performed by an ETEC™ certified technician.

  1. Open the Xtreme 8K™ bottom door.

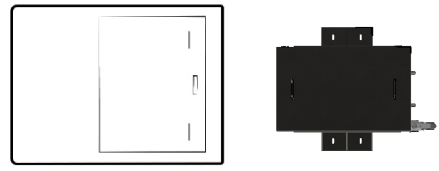

  2. Wheel the removable material vat towards the printer. Position the material vat so that the stop valve is facing out, away from the printer.

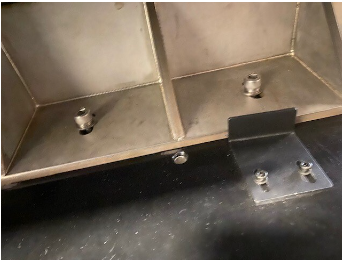

  3. There are stops inside the printer on the right and left sides. Use the stops to help guide the removable vat back into the printer as you push the vat in. Roll the material tank up and push in as far as it can go. Otherwise, the sensor will not detect the material level.

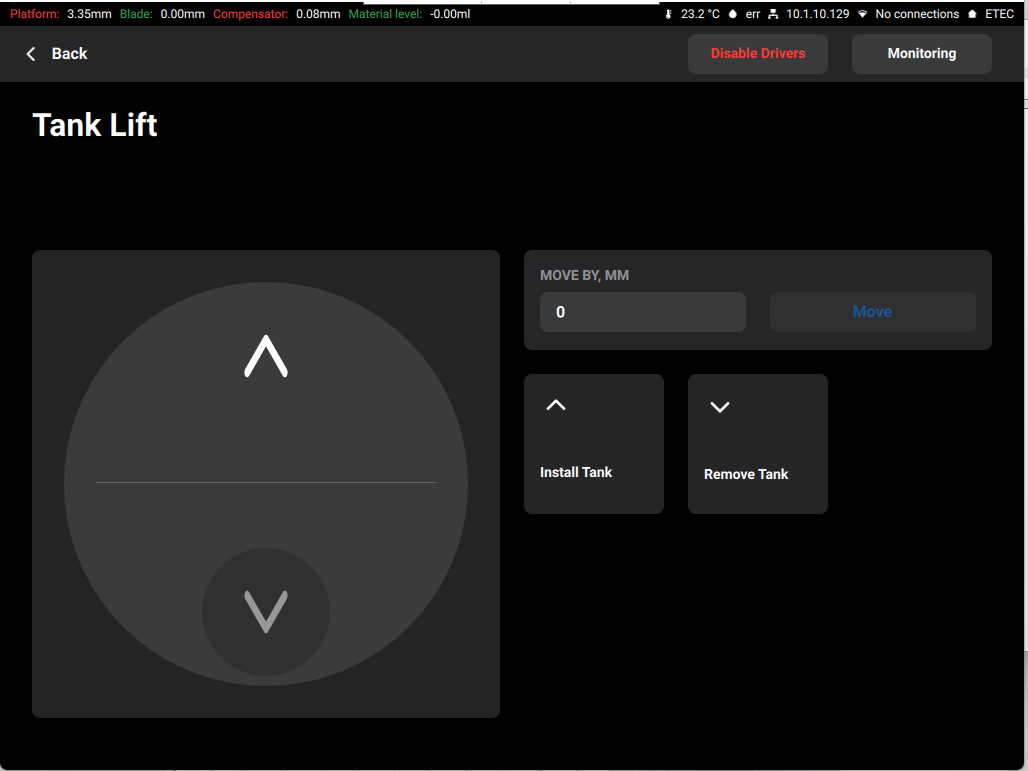

  4. In the Xtreme 8K™ CS, select Settings > Tank Lift.

  5. Set the step value in the Move By input field.

  6. Press Install Tank.

    → The material tank starts moving up.

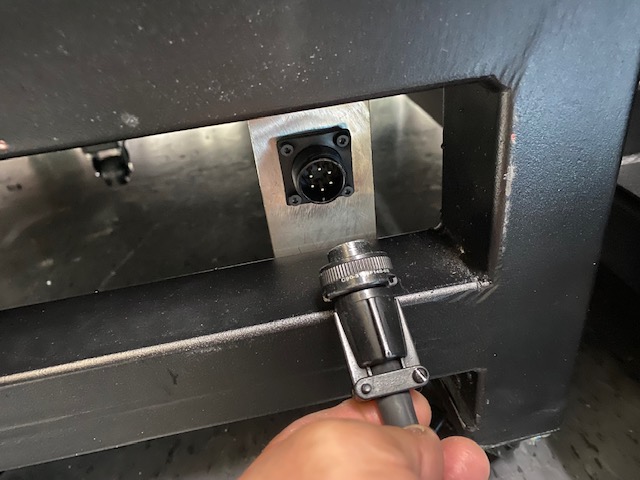

  7. Plug the wire harness back in and tighten it.

  8. Close the Xtreme 8K™ bottom door.
