Turn On Industrial Chiller

The industrial chiller is required to maintain proper operating temperature for the Xtreme 8K™’s projectors. The industrial chiller requires coolant and has a tank capacity of 10 l (2.64 gal).

CAUTION

Risk of damage to the printer: The industrial chiller should be installed and connected only by a certified technician.

CAUTION

Risk of damage to the printer: Do not operate projectors or printer without the chiller turned on and fully operational.

CAUTION

Risk of damage to the equipment: To prevent damage to the circulation pump, make sure there is coolant in the tank before turning the chiller on. Make sure the coolant level is in the green (normal) area. Do not overfill.

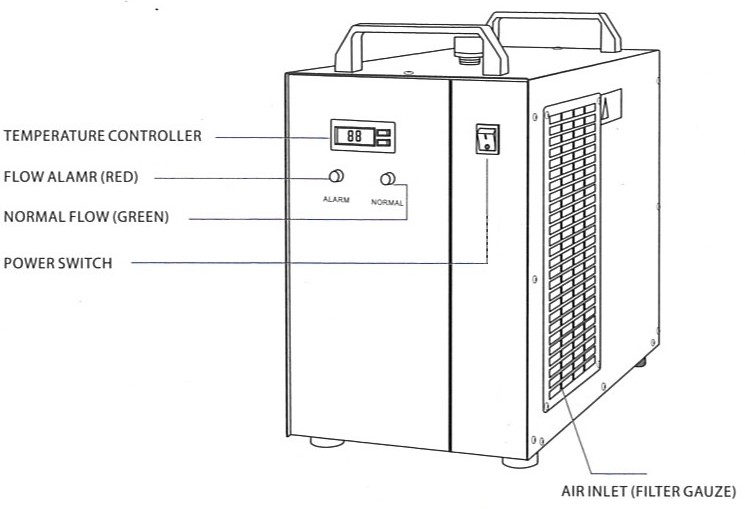

The chiller is fully set up by a technician. To turn the chiller on and off, press the power switch on the front side of the chiller.

Important: Use coolant only. Replace the coolant and filters every six (6) months.
