Calibrate Projection Power

Device
D4K™: CS version 9.0 and higher
Pro XL™: CS version 3.0 and higher

1. Navigate to the Check Projection Power section of the Generate Mask workflow and follow the instructions to initiate the projection power check.

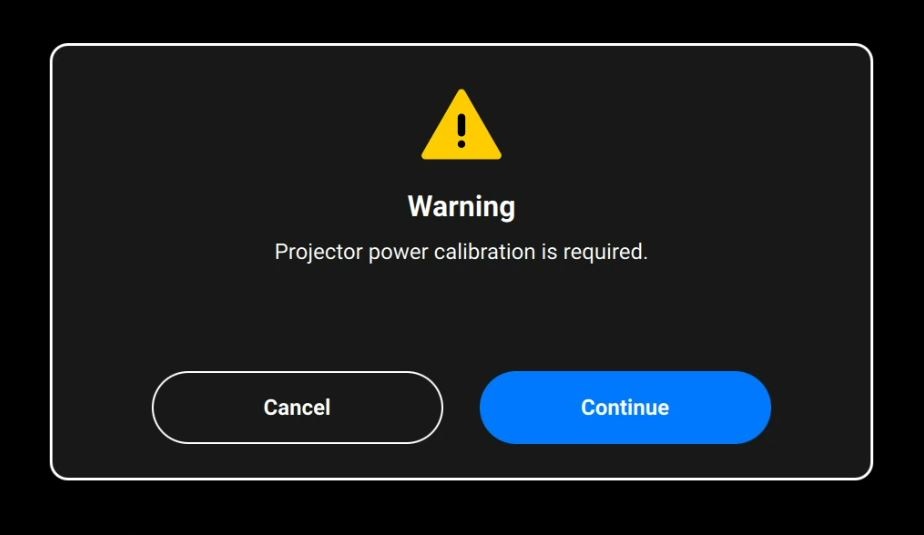

   → If the projection power check fails, the following screen appears:



2. Select Continue to begin projection power adjustment.

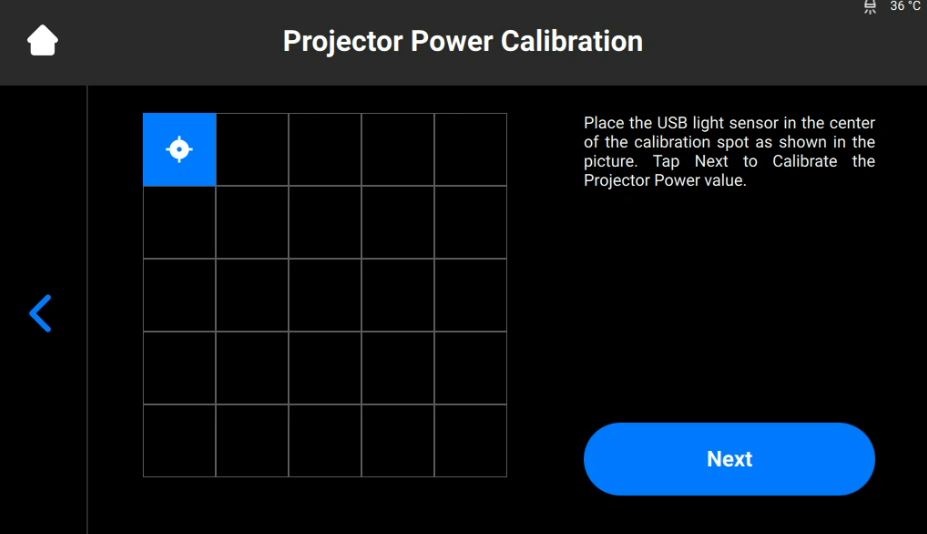

3. Place the USB light sensor in the center of the calibration spot projected onto a material tray and select Next to begin calibration.



4. When prompted, select OK to confirm the adjustment.



   → Projection power has been adjusted successfully.

5. Proceed with generating a compensation mask, see Generate Mask.
